Arcana – 124′ Motor Yacht

An ecofriendly exploration Motor Yacht

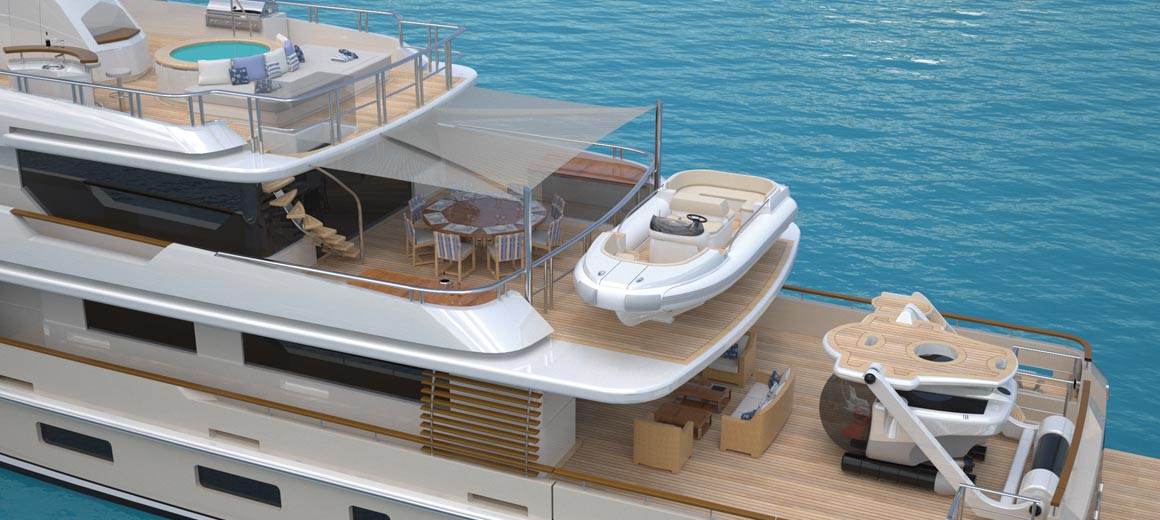

The concept of Arcana is based on exploring remote marine ecosystems, untouched and sensitive, whilst still being a motor yacht that is respectful of the environment.  She will be able to go offshore yet adhere to the most rigorous codes in terms of environmental protection, noise and vibration emissions, comfort, stability and energy efficiency.  At the same time this motor yacht is designed to transport and launch a three person observation submarine, like, for example, the UboatWorx Superyacht3.
Added to this, the Arcana concept anticipates that this exploration vessel has all the characteristics of a luxurious superyacht with a highly elegant design, a far cry from the typical workboat style often used in this type of exploration vessel.

Specifications

Boat Name Arcana
Type Motor yacht
Naval Architect Horacio Bozzo Design
Interior Designer TBC
Material Steel Hull and Aluminum superstructures
Length Over All 38.28 m
Water Line Lenght 36.90 m
Beam 8.5 m
Draft 2.6 m
Displacement 360 T
Owner and guest capacity 10 – 12  pers
Crew capacity 7 pers
Engine 2 Schottel SCD 200 Twin + 2x 360 kW electric motor
Genest 2 Caterpillar 450 ekW variable speed
Top speed – cruise speed 13 knots
Range 4000 nm at 10 knots

Drawings

  • profile
  • Front
  • Back
  • Lower deck
  • Main deck Version A
  • Main deck Version B
  • Upper deck
  • Sun deck
  • Profile GA
